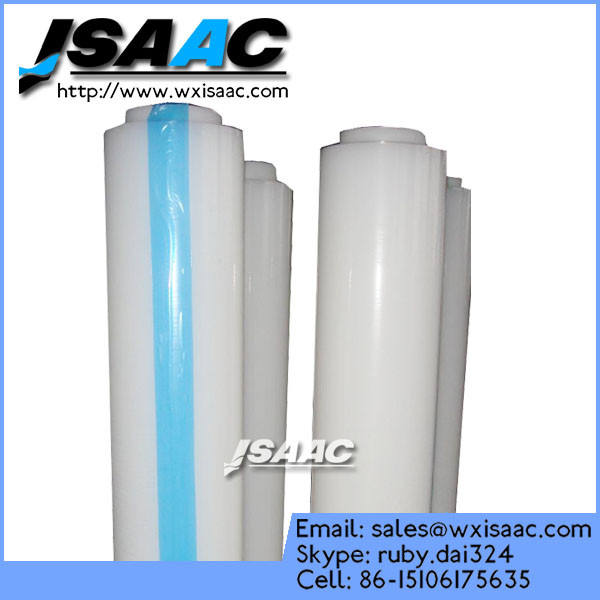

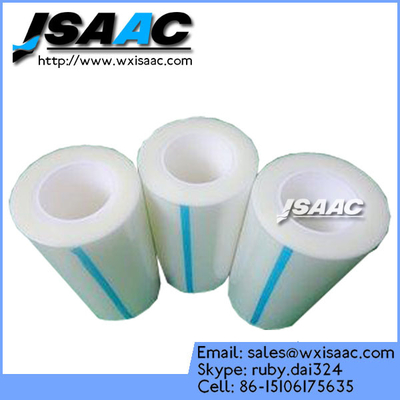

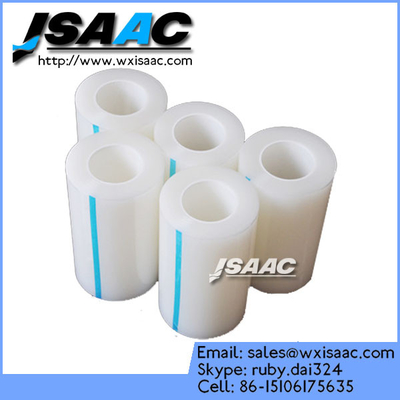

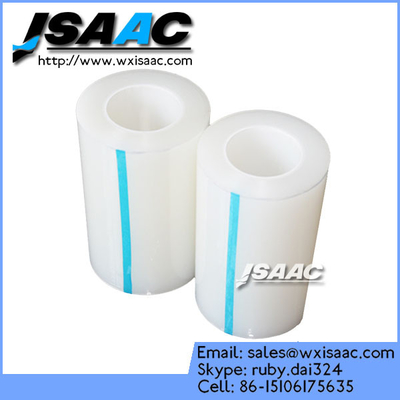

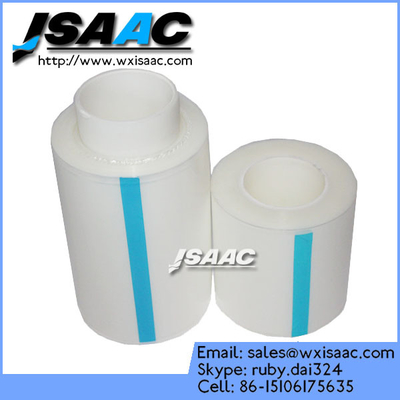

This film is used to protect the gloss of air-conditioning during production
process, transportation, storage and installation. The film is made of PE.
Adhesion, temperature resistance and thickness can be adjusted according
to clients’ actual demand. The adhesion is generated by the electrostatic
adsorption. Easy to apply and no residue left after removal. No deguming or
lifting edge like glued film.
Specification for electrostatic protective film for air-conditioning:
Base material: PE
Thickness: 30-150 microns (0.03-0.15mm)
Width: 1.2m
Length: 200m
Temperature resistance: 30-150℃, can be customized
Adhesion: 1-500g/25mm, can be customized
Color: transparent, colorful, white
Production process: three-layer co-extrusion
PE electrostatic protective film --- Applications for references
Model | Base material | Thickness
(microns) | Width
(mm) | Length
(m) | Adhesion
| Elongation |
ISCE30* | PE | 40/50 | 30-1230 | 200 | 0.25-0.3 | ≥250% |
ISCE40* | PE | 40/50 | 30-1230 | 200 | 0.35-0.45 | ≥250% |
ISCE60* | PE | 40/50 | 30-1230 | 200 | 0.6-0.7 | ≥250% |
ISCE80* | PE | 40/50 | 30-1230 | 200 | 1.0-1.1 | ≥250% |
ISCE120* | PE | 40/50 | 30-1230 | 200 | 1.4-1.5 | ≥250% |
ISCE150* | PE | 40/50 | 30-1230 | 200 | 1.75-1.85 | ≥250% |
ISCE180* | PE | 40/50 | 30-1230 | 200 | 2.15-2.35 | ≥250% |
Note*:
ISCE30: suitable for PVC sheets, electric instrument and display screen.
ISCE40: suitable for copper mirror plate, electric instrument and display screen.
ISCE60: suitable for fine matte stainless steel sheet and plastic screen.
ISCE80: suitable for rough matte stainless steel sheet and aluminum composite panel.
ISCE120: suitable for fine grain plastic plate.
ISCE150: suitable for rough grain plastic plate.
ISCE180: suitable for surfaces that are very hard to stick.
