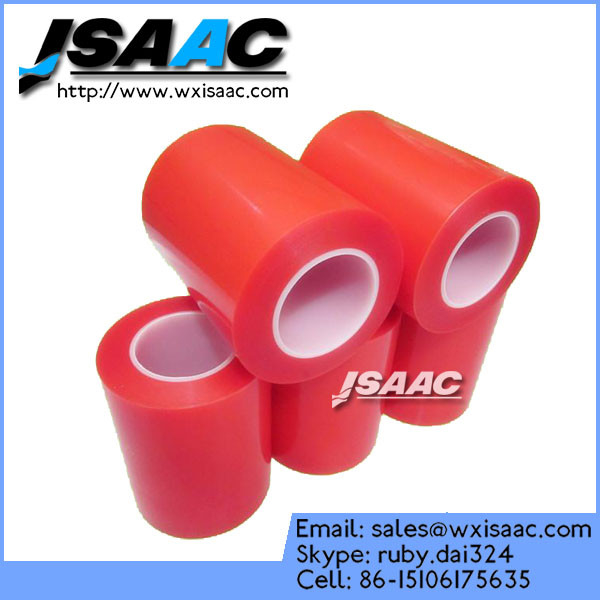

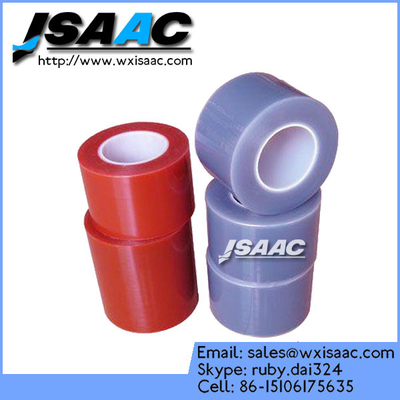

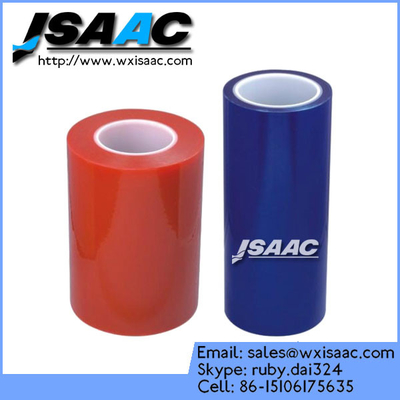

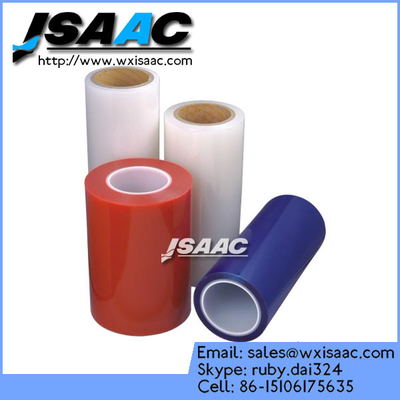

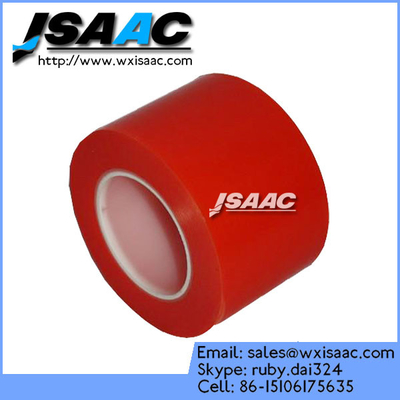

Specification of red color electrostatic protective film:
-
Material: PE
-
Usage: Industrial
-
Process: Three-layer co-extrusion
-
Length: Max. 4000 meters, can be customized.
-
Width: 1.85m
-
Thickness: 0.03-0.15mm
-
Temperature resistance: Can resist the highest temperature of 150℃
-
Color: Any color can be customized.
-
Adhesion: High/medium/low/supper high
Characteristics of red color electrostatic protective film:
1, Electrostatic protective film is film without glue. The electrostatic adsorption forces is the
adhesion. So the adhesion is relatively low.
2, After application, the adhesion changes very little. Easy to remove. It has good weatherability.
During process of deep drawing and bending, the film sticks firmly on adherend and cause no
contamination to adherend.
3, Good transparency. No water wave, no crystal point. The film is coiled evenly. With proper
adhesion. Easy to apply and remove.
4, Hardening treatment has been done to the surface. It has good optical effect such as ultra
high transmittance.
5, The film is specially designed for not covering air during application, in order to increase the
beauty of flat panel display.
6, High transparency, non-toxic and eco-friendly.
Application of red color electrostatic protective film:
1, PMMA(acrylic), PET, PVC, PC, PP, high light material, optical glass and similar industries.
2, Hardware industry: Computer case, galvanized plate, aluminum, stainless steel, titanium
plate, iron-plastic sheet, glass, solar panel and so on.
3, Photoelectric industry: LED, back light, EL lamp, thin-film switch, phone screen and so on.
4, High gloss plastic industry: ABS, PP injection-molded products, PVC panels, acrylic panels,
instrument, plastic lens, painted product surfaces and so on.
5, Printing industry: PVC, PC panel, aluminum panel, photographic film and other printing plate.
6, Wire and cable industry.
7, Electronics industry. For example, in many electronics factories, during production, protective
film should be used to protect finished or semi-finished products from being scratched or
damaged on the assembly line.
|
Product Model
|
Adsorption on
glass surface
|
Main surfaces to protect
|
|
ISCE-14
|
1g/25mm
|
Various kinds of plastic sheets
|
|
ISCE-50-70A
|
3-4g/25mm
|
Glass lens and high light surfaces, can resist temperature
of 70 degree C
|
|
ISCE-50-70B
|
6-7g/25mm
|
PET electroplate, can resist temperature of 70 degree C
|
|
ISCE-50-70C
|
8-10g/25mm
|
High light plastic or smooth surface, can resist temperature
of 70 degree C
|
|
ISCE-30-70A
|
4-5g/25mm
|
Various kind of stamped plastic boxes surface, can resist
temperature of 70 degree C
|
|
ISCE-30-70B
|
7-8g/25mm
|
Various kind of stamped plastic boxes surface, can resist
temperature of 70 degree C
|
|
ISCE-50-50
|
100-200g/25mm
|
Color coated plate, aluminum composite panel and etc.
can resist temperature of 50 degree C
|
|
ISCE-50-150
|
10-15g/25mm
|
High light surface, can resist temperature of 150 degree C
|
|
ISCE-40-130
|
30-40g/25mm
|
Plastic sheet laminating and punching forming under high
temperature, can resist temperature of 130 degree C
|
|
ISCE-50-100B
|
100-150g/25mm
|
Special products that are difficult to stick. can resist temperature
of 100 degree C
|
|
ISCE-50-100A
|
30-50g/25mm
|
Special products that are difficult to stick. can resist temperature
of 100 degree C
|
