Product Details:
Payment & Shipping Terms:
|
Thickness Range: | 80microns, 90microns, 100microns | Width: | 1280mm |
---|---|---|---|
Color: | Sky Blue, Ocean Blue, Brick Red, Purple Red, Ink Gray And Other Colors | Surface: | Uniform Without Scratches |

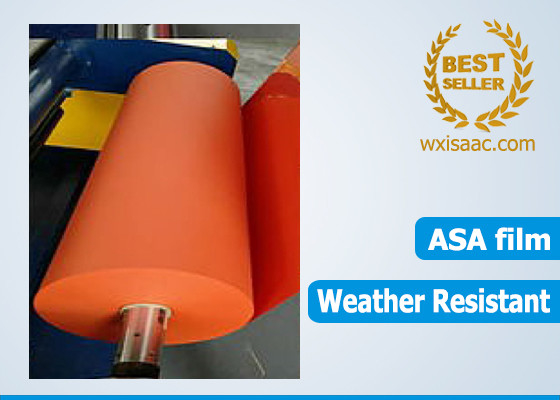

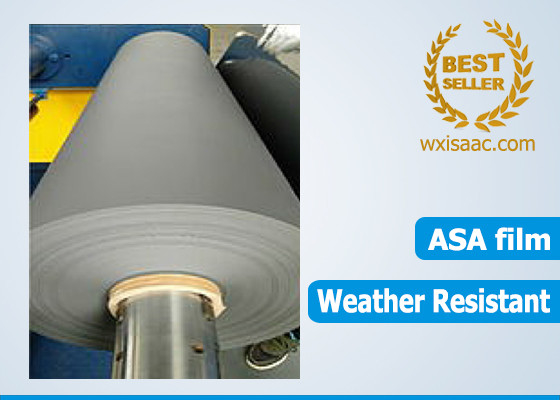

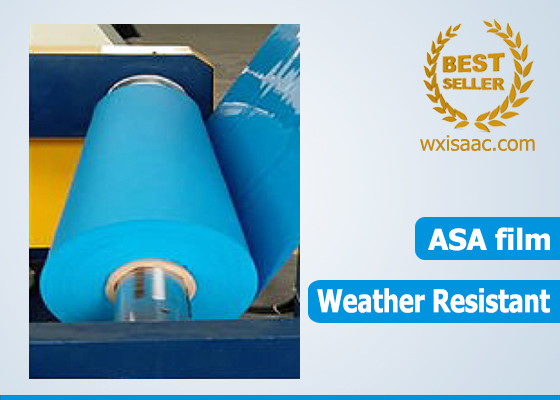

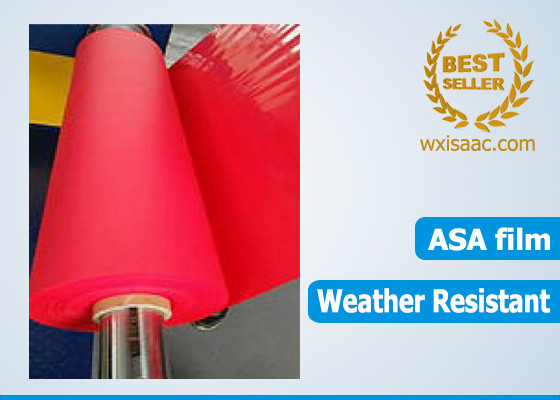

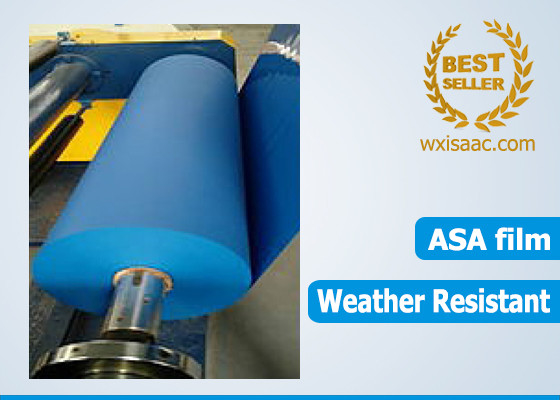

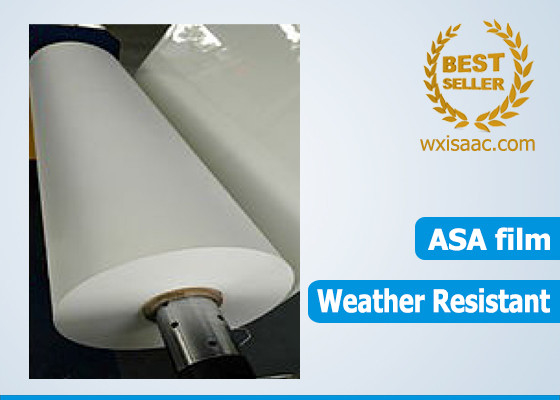

ASA film is made of Acrylonitrile styrene acrylate (ASA), which also called acrylic styrene acrylonitrile. ASA (also called ASA resin) is an amorphous thermoplastic developed as an alternative to acrylonitrile butadiene styrene (ABS), but with improved weather resistance, and is widely used in the automotive industries.
ASA film is a super weather resistant functional film. It has long-lasting and bright colors, excellent weather resistance, chemical resistance and self-cleaning properties. It can be used in building materials fields such as resin tile, steel plate, decorative sheet and etc. The colors of ASA film are mainly sky blue, ocean blue, brick red, purple red, ink gray and other colors. Thickness range is 30-150 microns. Width range is 1000-1280mm. Length of each roll is 600m or 1200m or customized.
ASA film is colored with weather-resistant toner. It can be exposed outdoors for a long time, and the color stability can be guaranteed for about 10 years under the natural environment of sunlight (ultraviolet rays, ozone, etc.).
ASA resin film has ultra-high weather resistance
ASA resin film can be exposed outdoors for a long time, and it can still maintain its physical properties stable after exposure to sunlight (ultraviolet rays, ozone and etc.), humidity, rain (acid rain), sea water (salt spray), haze and etc. Material mechanical properties such as strength can be kept stable.
Under laboratory conditions, the ASA resin membrane is soaked with strong acid and alkali such as diluted hydrochloric acid, nitric acid, NaOH alkali, and its physical properties remain unchanged.
Outdoor sand, dust, sewage and contaminants cannot stay on the ASA resin film. The ASA resin film is not easy to absorb dust and dirt, and it has a typical "lotus effect".
ASA resin film is used at a temperature of about 80 °C, and its shrinkage rate is within ±0.5%, so it has a wide range of thermal processing.
ASA resin film is used for the coating of color steel tiles, which reduces the pollution of spray paint to the environment. It has a good application prospect.
Synthetic resin tile covered with ASA resin film
Steel plate covered with ASA resin film
ASA high weather resistance film is a kind of film product which uses ASA resin (acrylonitrile-styrene-acrylic Acrylate ternary copolymer), inorganic toner and auxiliaries as raw material, through specific ratio by blending modification and pulling membrane.
Technical Specification |
||||
Property Item | Unit | Test Result | Test Method | |
Standard Value | Actual Value | |||
Tensile Strength | MPa | >35 | 42.7 | ASTM D638 |
Elongation | % | -- | 29.6 | ASTM D638 |
Bending Strength | MPa | >40 | 67.4 | ASTM D790 |
Bending Modulus | MPa | -- | 1896 | ASTM D790 |
IZOD Impact Strength | (3.2mm notched J/M) | -- | 195 | ASTM D256 |
IZOD Impact Strength | (3.2mm unnotched J/M) | >380 | 396 | ASTM D256 |
Heat Deflection Temperature | (1.82MPa)℃ | -- | 81.9 | ASTM D648 |
Melt Index |
230*21.6kg g/10min |
>20 | 24.7 | ASTM D1238 |
Flam Retardant Property | CLASS 1/16 | -- | HB | UL-94 |
Flame Retardant Property | CLASS 1/32 | -- | HB | UI94 |
Rockwell Hardness | R | -- | 106 | ASTM D785 |
Density | g/cm3 | -- | 1.1165 | ASTM D792 |
Note: The above data is from the experiment values, for reference only, not as a formal guarantee commitment data.
