Material: | PE | Type: | Electrostatic Protective Film |
---|---|---|---|
Usage: | Glass Protection | Feature: | Anti Scratch, Dust Free |
Hardness: | Soft | Processing Type: | Multiple Extrusion |
Transparency: | Transparent |

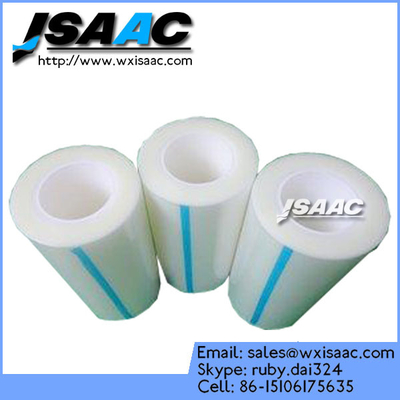

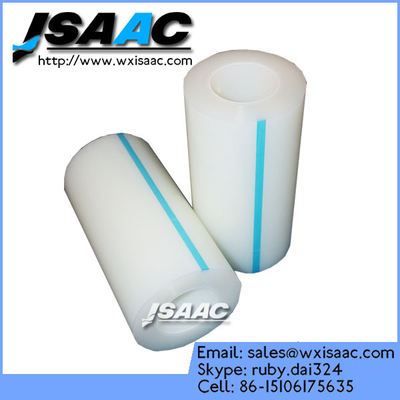

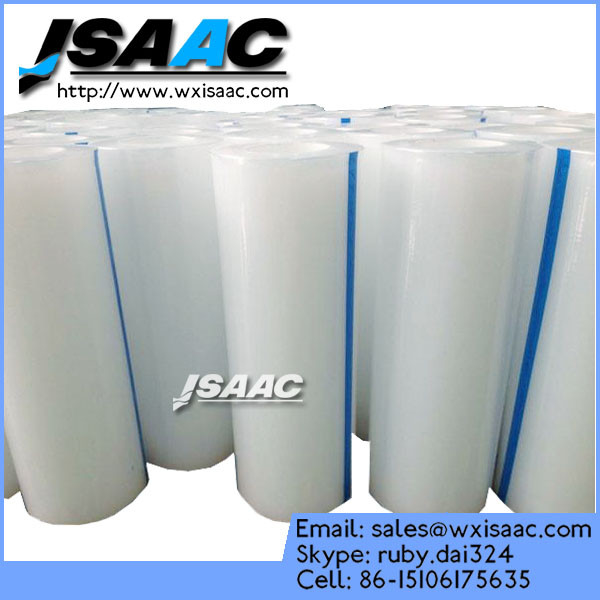

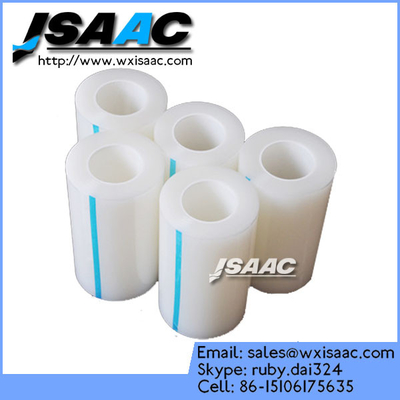

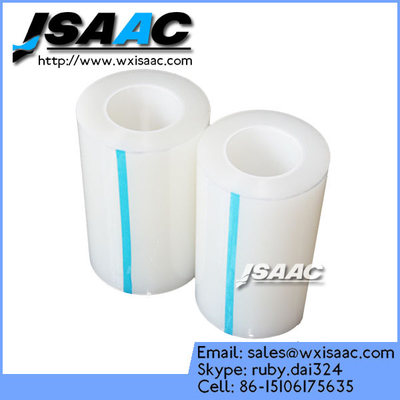

This film is used to protect the gloss of LCD VCM panel during production process,
storage, transportation and installation. The film is made of PE. Adhesion, temperature
resistance and thickness can be adjusted according to clients’ actual demand. The
adhesion is generated by the electrostatic adsorption. Easy to apply and no residue
left after removal. No deguming or lifting edge like glued film.
Specification for Electrostatic protective film for LCD VCM panel:
Base material: PE
Thickness: 30-150 microns (0.03-0.15mm)
Width: 1.2m
Length: 200m
Temperature resistance: 30-150℃, can be customized
Adhesion: 1-500g/25mm, can be customized
Color: transparent, colorful, white
Production process: three-layer co-extrusion
PE electrostatic protective film --- Applications for references
Model | Base material | Thickness | Width | Length | Adhesion | Elongation |
ISCE30* | PE | 40/50 | 30-1230 | 200 | 0.25-0.3 | ≥250% |
ISCE40* | PE | 40/50 | 30-1230 | 200 | 0.35-0.45 | ≥250% |
ISCE60* | PE | 40/50 | 30-1230 | 200 | 0.6-0.7 | ≥250% |
ISCE80* | PE | 40/50 | 30-1230 | 200 | 1.0-1.1 | ≥250% |
ISCE120* | PE | 40/50 | 30-1230 | 200 | 1.4-1.5 | ≥250% |
ISCE150* | PE | 40/50 | 30-1230 | 200 | 1.75-1.85 | ≥250% |
ISCE180* | PE | 40/50 | 30-1230 | 200 | 2.15-2.35 | ≥250% |
Note*:
ISCE30: suitable for PVC sheets, electric instrument and display screen.
ISCE40: suitable for copper mirror plate, electric instrument and display screen.
ISCE60: suitable for fine matte stainless steel sheet and plastic screen.
ISCE80: suitable for rough matte stainless steel sheet and aluminum composite panel.
ISCE120: suitable for fine grain plastic plate.
ISCE150: suitable for rough grain plastic plate.
ISCE180: suitable for surfaces that are very hard to stick.
